SDB-80TS(ZWY-80) Wheel Mucking Loader

    Product Description of Wheel Mucking Loader

    Sinosun Technology Group Co.,Ltd. is China mucking loader factory. Wheel belt mucking loader (wheel haggloader or continuous miner), is one type of high efficiency, environment protection multi-function underground tunnel rock mining loading machine integrating moving, digging, collecting, loading, conveying and dumping. Loading capacity of ZWY-80 wheel belt mucking loader is 80m³/hour.

    The wheel belt mucking loader adopt electricity as power to work, walk with four wheel solid tyre, no tail gas, environment protection. Our rock mucking cargador adopt full-hydraulic drive system, hydraulic pilot operation. This mining mucking cargador is high efficient and labour saving, easy operation and maintain, safety and compact structure.

    Our belt type wheel mucking loader can be equipped with diesel engine, it become dual power mucking loader. The mucking machine also can be equipped with hydraulic hammer or breaking hammer to break, repair huge rock and coal sheet on the roadway baseplate or on the bottom of the side-panel after blasting. The rock loader can also be equipped with cable reel. The automatic winding machine is easy to operate and can be completed without personnel, greatly reducing labor costs and improving work efficiency.

    Tyre blet mucking loader is used widely for metal mine, non-metal mine, hydropower project, water diversion tunnel project, highway, subway and railway project, Urban pipe network construction, national defence construction project etc.

    We support custom mucking loader. We can design and customize wheel belt mucking loader that is more suitable to your tunnel according to your tunnel conditions including width and hegiht of tunnel and slope size of roadway. We design and customize the dumping length and height of mucking loader accoring to your dumper truck.

Technical Parameter of Belt Conveyor Wheel Mucking Loader:

A  Excavating Width(mm) ≥4800
B  Excavating Distance(mm) ≥1850
C  Excavating Height(mm) ≥2800
D  Excavating depth(mm) ≥500
E  Dumping Height(mm) 1700(changeable)
F  Minimum Loading Height(mm) 1200(changeable)
G  Dumping Distance(mm) 1800(changeable)
H  Maximum Rotation Angle(°) ±50
Weight (Kg) 5000
Dimension(L*W*H mm) 6000*1700*1800
Loading Capacity(m³/hour) 80
Climbing Ability(°) ≤8
Electric Motor Power(kw) 22
Mini turning radius(mm) 4500
Ground Clearance(mm) 220
Travelling Speed(m/s) 0.8
Rated working pressure(Mpa) 20
Applied working section of tunnel (Width*Height)(mm) ≥2300*2300

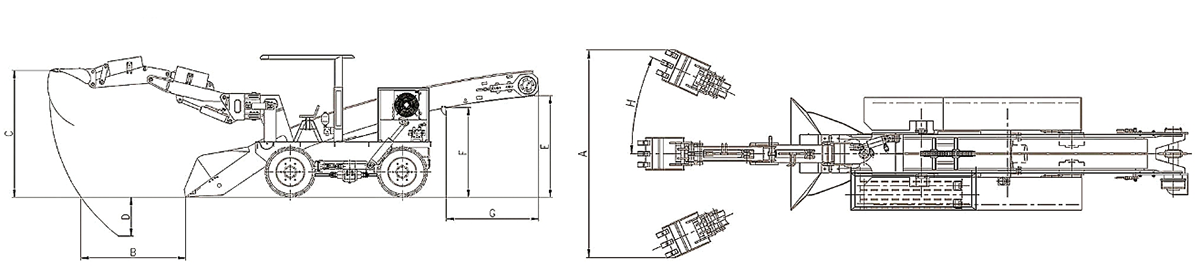

Working Diagram of Belt Conveyor Wheel Mucking Loader

Product Configuration of Belt Conveyor Wheel Mucking Loader

  • Belt
  • Belt Conveyor
  • Electric Element
  • Guide Handle
  • Radiator
  • Distribution Valve
  • Electric Motor
  • Hydraulic Pump

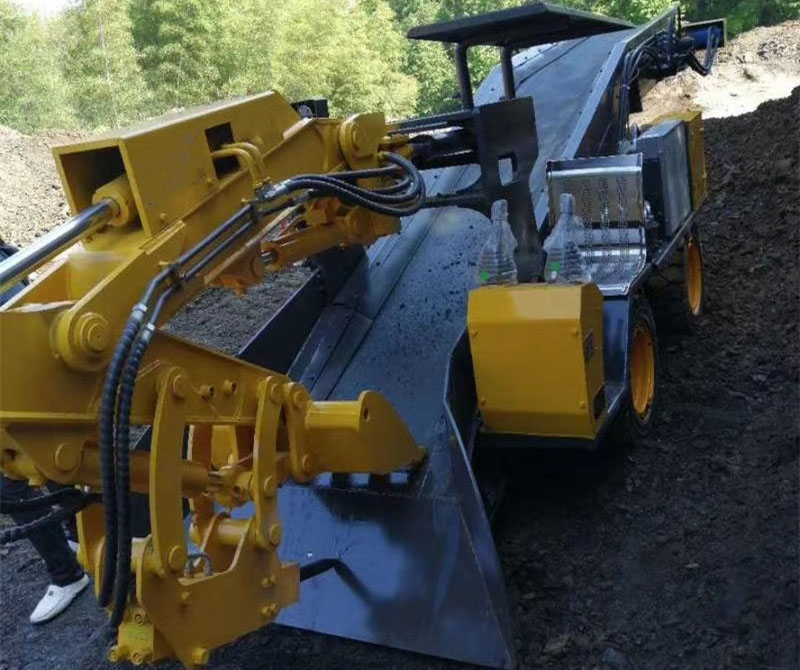

Belt Conveyor Wheel Mucking Loader Work Site:

Complete Tunneling Solutions
